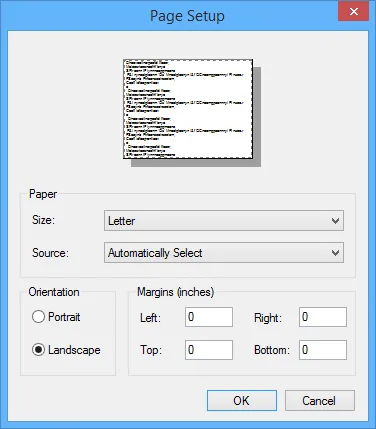

The Page Setup dialog

Summary

The Page Setup dialog is used to specify the page settings of your PDF3D export.

Access

The dialog is accessed by clicking Page Setup in the PDF3D Dialog (File » Export » PDF3D) in a PCB document.

Options/Controls

  • Paper
    • Size - use the drop-down to select the paper size.
    • Source - use the drop-down to select the paper tray.
  • Orientation - use to select the paper orientation. Selections include:
    • Portrait
    • Landscape
  • Margins (inches) - enter the desired margins on the page. Measurements are in inches (decimals are allowed) and can be specified for Left, Right, Top, and Bottom margins.
