KB: IIS URL Rewrite Rule to Force HTTP to HTTPS for Altium Server Connection

Solution Details

Issue: HTTP Connections Are Not Automatically Redirected

Clients accessing the Altium Server via http://<FullServerComputerName>:9780 are not automatically redirected to HTTPS https://<FullServerComputerName>:9785, requiring manual intervention and exposing potential security risks. The goal is to enforce secure communication without disrupting Altium’s internal ports (9780 for HTTP and 9785 for HTTPS).

Root Case: No Built-In Redirect in Altium Server

Altium Server manages its own ports but does not provide an automatic HTTP-to-HTTPS redirect for external connections. Without a redirect, users may connect insecurely or encounter login issues.

Recommended Actions

To enforce secure communication:

• Configure IIS to redirect all HTTP traffic to HTTPS on port 9785.
• Update Altium configuration to prefer HTTPS.
• Block external HTTP access on port 9780 using Windows Firewall.

Step-by-Step Implementation

Objective: When a client enters http://<FullServerComputerName> it should automatically redirect to https://<FullServerComputerName:9785 without interfering with the Altium Server.

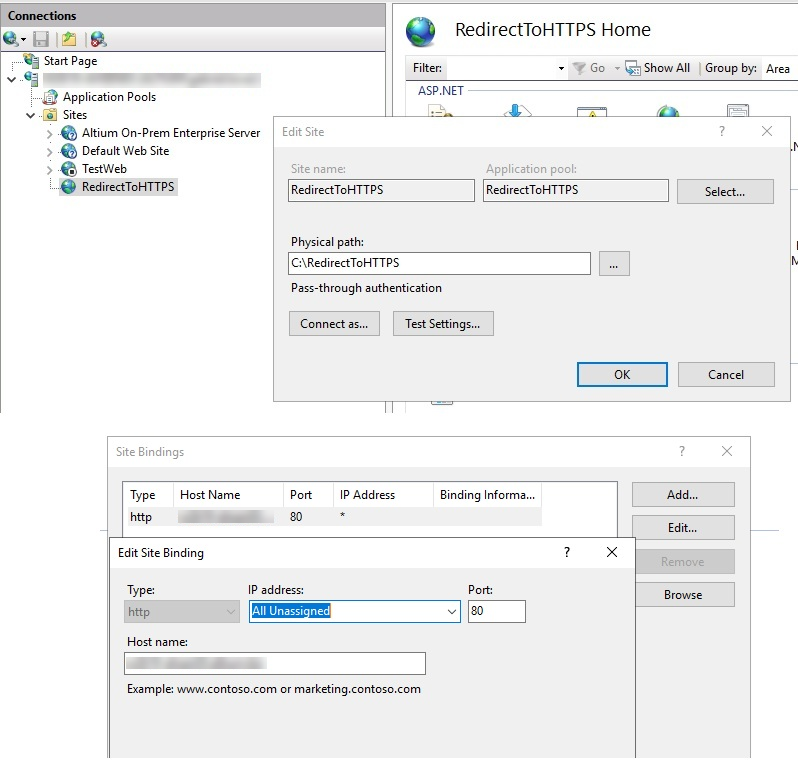

1. Create an IIS Redirect Site

1. Open IIS Manager on the Altium Server.
2. Right-click Sites » Add Website....
3. Configure
   • Site name: RedirectToHTTPS
   • Physical path: C:\RedirectToHTTPS (create this folder manually)
   • The web.config will be created automatically
4. Set Binding
   • Type: HTTP
   • IP address: All Unassigned
   • Port: 80
   • Host name: FullServerComputerName

Note: This site will only use port (HTTP). The Altium Server will continue to handle ports 9870 (internal HTTP) and 9785 (HTTPS) without any conflict.

2. Install URL Rewrite Module

• Download from https://www.iis.net/downloads/microsoft/url-rewrite.
• Restart IIS after installation.

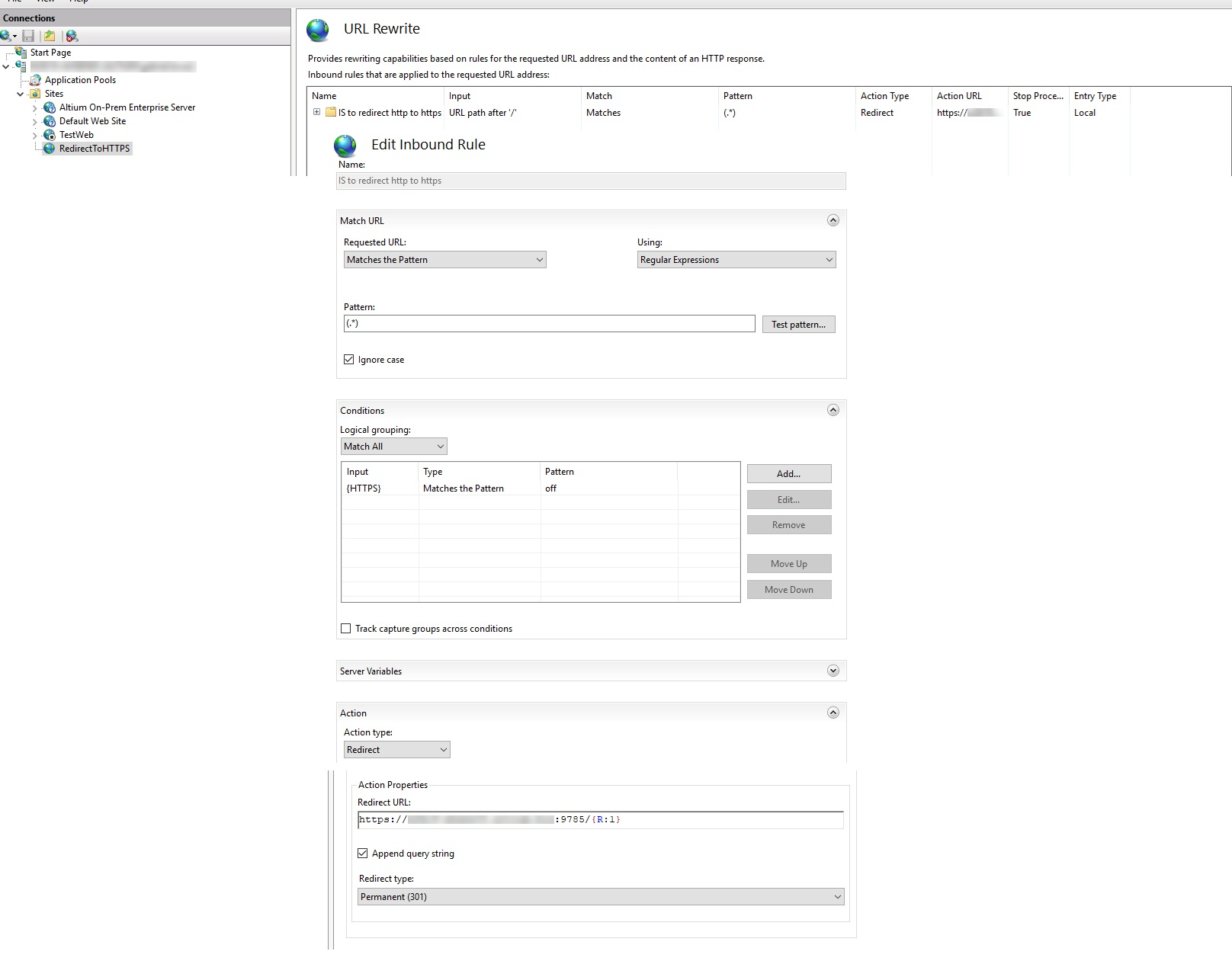

3. Create Redirect Rule

1. Select RedirectToHTTPS » open URL Rewrite.
2. Click Add Rules... » Inbound Rules » Blank Rule » OK.
3. Configure
   • Match URL
     • Requested URL: Matches the Pattern
     • Using: Regular Expressions
     • Pattern: (.*)
   • Conditions
     • Condition input: {HTTPS}
     • Check if input string: Matches the Pattern
     • Pattern: off
   • Action
     • Action type: Redirect
     • Redirect URL: https://<FullServerComputerName:9785/{R:1}
     • Redirect type: Permanent (301)
4. Save and apply changes.

4. Update Altium Server Configuration

Edit LocalVault.ini (default C:\Program Files (x86)\Altium\Altium365)

WebsiteDomain=FullServerComputerName:9785
Port=9780
HttpsPort=9785
PreferredProtocol=HTTPS

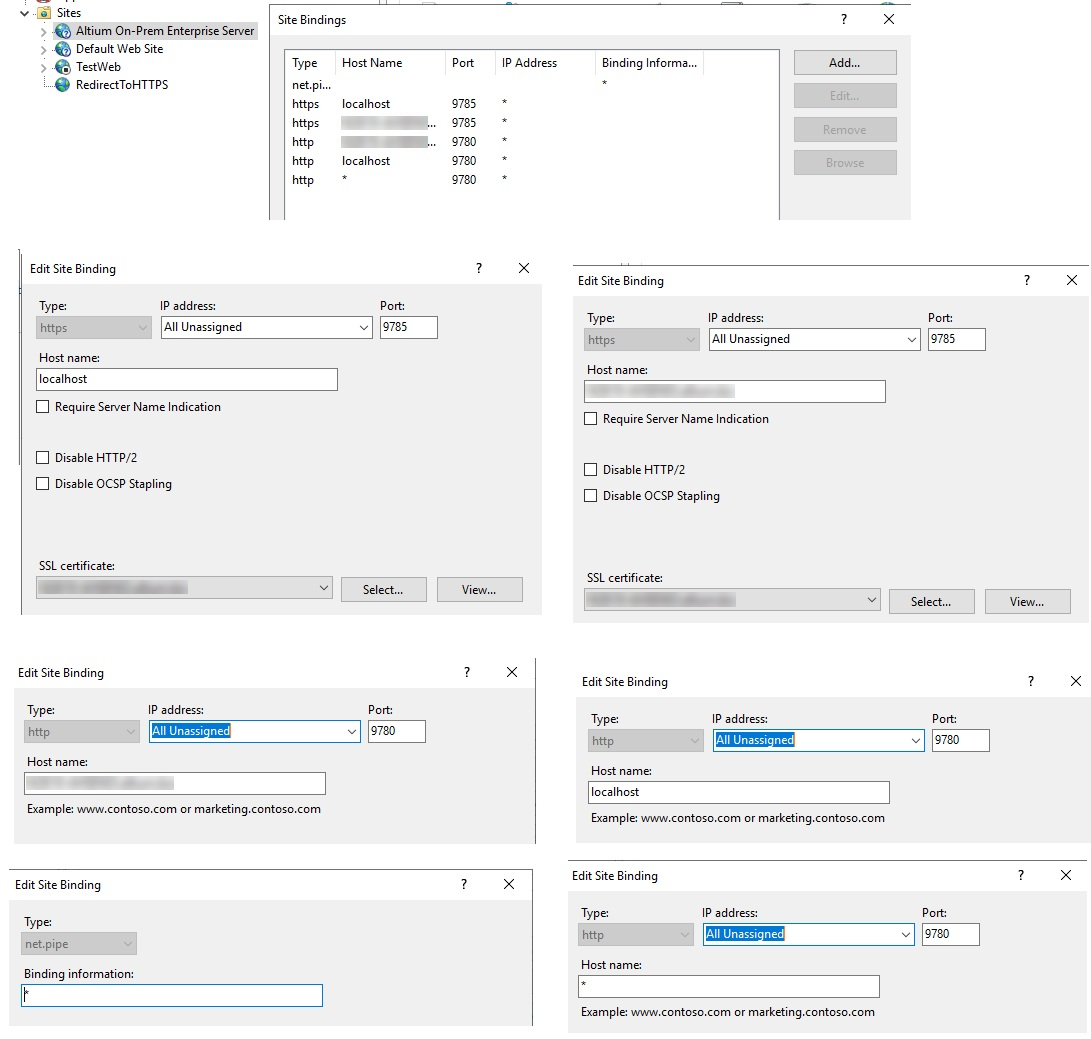

5. Verify HTTPS Binding

• Open the Altium Server site in IIS.
• Ensure HTTPS bindings have a valid certificate.

6. Restart all Altium Services

• Reset IIS: Open CMD as administrator and run iisreset.
• Restart Altium DXP App Server Pinger service in Windows Services.

7. Enforcing Secure Communication Through Firewall Configuration

To ensure secure communication and guarantee that all traffic is transmitted over HTTPS, a firewall should be configured on the machine where the Altium Server is hosted. This configuration must block inbound connections from client machines attempting to access the server via http://<FullServerComputerName:9780>.
By preventing unsecured HTTP access, all clients are forced to establish connections exclusively over HTTPS, thereby maintaining a secure and compliant communication channel.

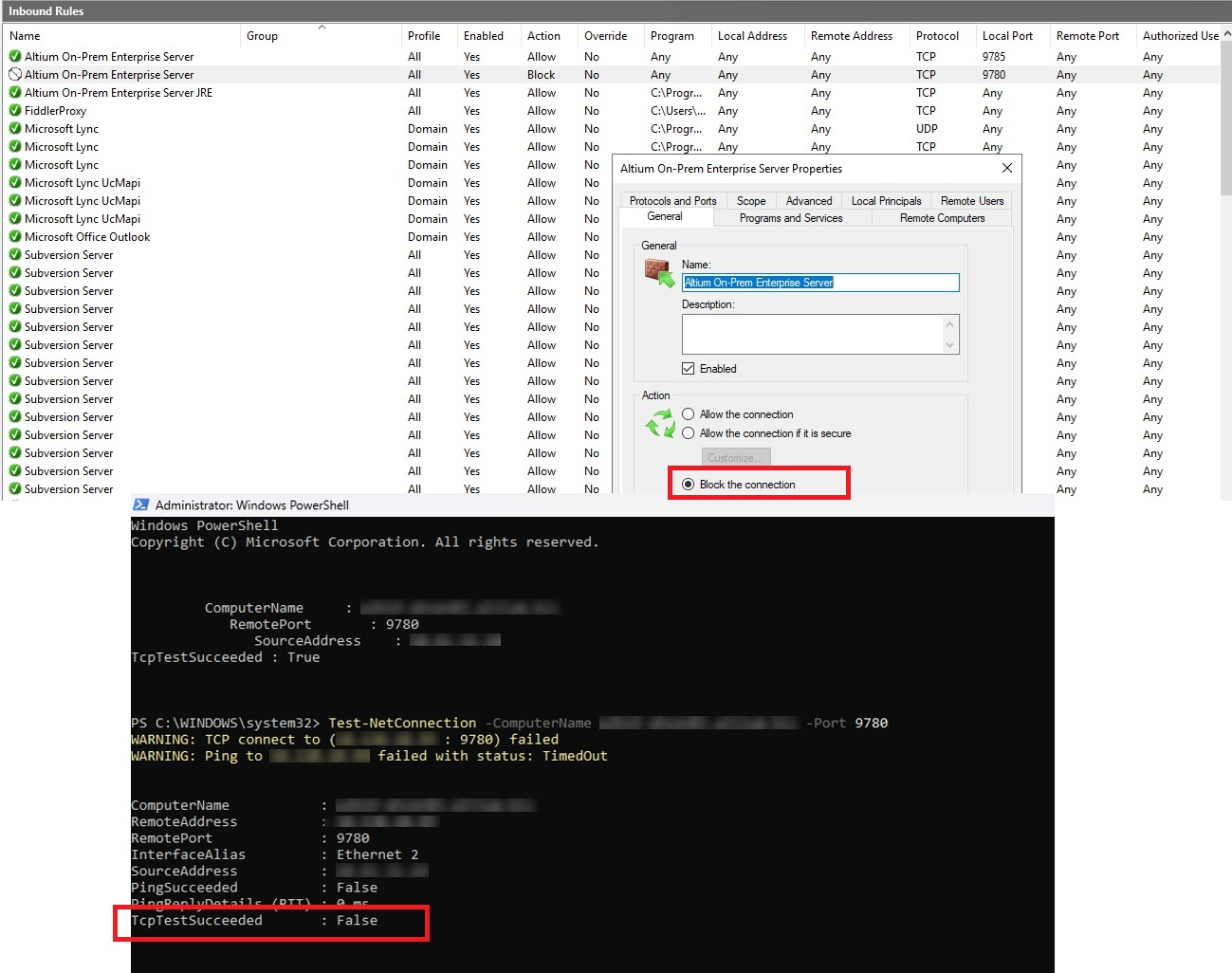

1. On the Altium Server machine, open Windows Defender Firewall and ensure that the firewall service is active.
2. Navigate to Inbound Rules and locate the rule titled Altium On-Prem Enterprise Server (Local Port 9780), which is automatically created during Altium Server installation.
3. Open the rule and configure it to block connections, thereby preventing any external clients from using this port.
4. From a client machine, open PowerShell and execute the following command to verify that port 9780 is no longer accessible:

Test-NetConnection -ComputerName FullServerComputerName -Port 9780

Expected Results:

• On a client machine, enter http://<FullServerComputerName>.
• The URL should automatically redirect to http://<FullServerComputerName:9785.
• All external attempts to connect to http://<FullServerComputerName:9780 are effectively blocked.
• All external HTTP traffic is routed through IIS and automatically redirected to HTTPS (port 9785).
