Applies to NEXUS Client version: 4

This documentation page references Altium NEXUS/NEXUS Client (part of the deployed NEXUS solution), which has been discontinued. All your PCB design, data management and collaboration needs can now be delivered by Altium Designer and a connected Altium 365 Workspace. Check out the FAQs page for more information.



The Import Wizard will quickly and easily convert your design files from other vendors to Altium NEXUS files. The Wizard walks you through the import process, handling both the schematic and PCB parts of the project, as well as managing the relationship between them.

To make use of the importer technologies available in Altium NEXUS, you must install the relevant functionality as part of the Altium NEXUS Platform itself. The core design functionality for your installation can be modified at any time after installation and directly from the Extensions & Updates page (click the drop-down associated with at the top-right of the design space then choose Extensions and Updates). From the Installed page, click the Configure control at the top-right of the Platform region. This accesses the Configure Platform page that presents the core feature set for the software and is identical in content to that found on the Select Design Functionality page of the Altium NEXUS Installer. Enable the required functionality in the Importers\Exporters region of this page.

Using the Import Wizard

The Import Wizard is launched by clicking File » Import Wizard from the main menus.

Wizard Navigation

  • Click Cancel to close the Import Wizard.
  • Click Back to navigate to the previous screen.
  • Click Next to navigate to the next screen.
  • Click Finish to close the Import Wizard. This option is available only on the final page of the Wizard.

Selecting the Type of Files to Import

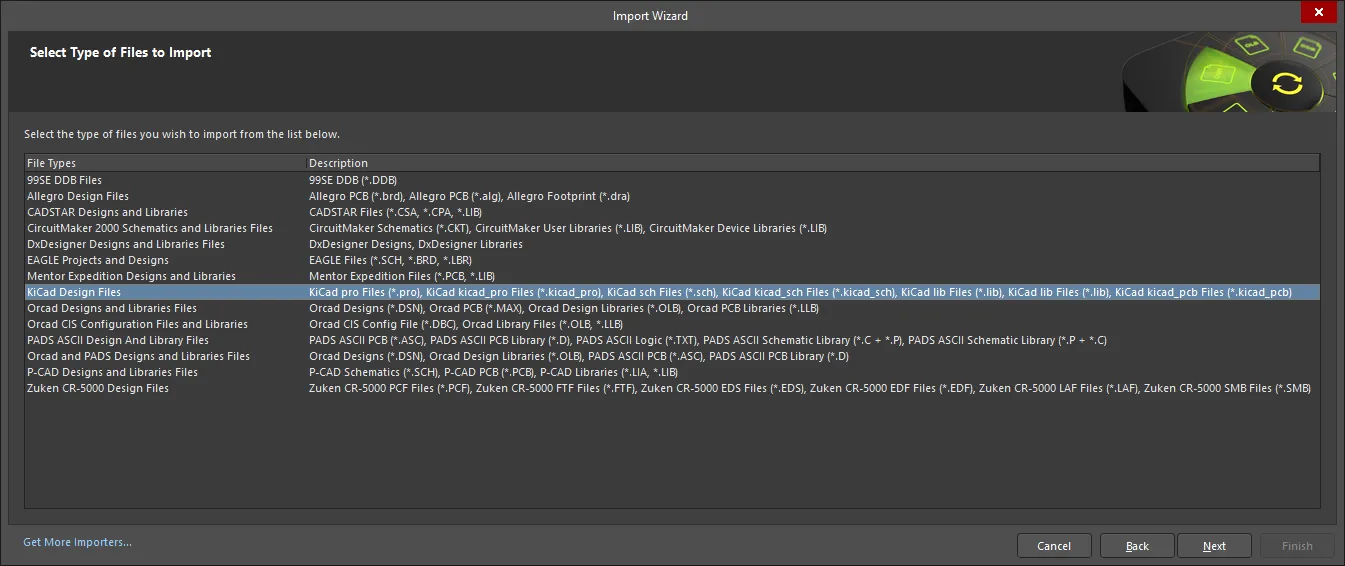

Use this page of the Wizard to select the types of files you want to import. The Import Wizard can be used to import the following types of design files:

File Types

Description

Protel 99SE DDB Files

99SE DDB (*.ddb).

Cadence® Allegro® Design Files

Allegro binary PCB (*.brd), Allegro ASCII PCB (*.alg), Allegro Footprint (*.dra). (requires Allegro to convert binary (*.brd) files, check the Import Prerequisites)

Zuken CADSTAR® Designs and Libraries

CADSTAR Schematic Archive (*.csa), CADSTAR PCB Archive (*.cpa), CADSTAR Part Library (*.lib).

CircuitMaker 2000 Schematics and Libraries

CircuitMaker Schematics (*.ckt), CircuitMaker User Libraries (*.lib), CircuitMaker Device Libraries (*.lib).

Mentor Graphics® DxDesigner® Designs and Libraries

DxDesigner Designs, DxDesigner Libraries.

Mentor Graphics® Expedition® Designs and Libraries

Mentor Expedition files (*.pcb, *.lib).

KiCad® Design Files KiCad pro Files (*.pro), KiCad kicad_pro files (*.kicad_pro), KiCad sch Files (*.sch), KiCad lib Files (*.lib), KiCad kicad_pcb Files (*.kicad_pcb), KiCad kicad_sch Files (*.kicad_sch).

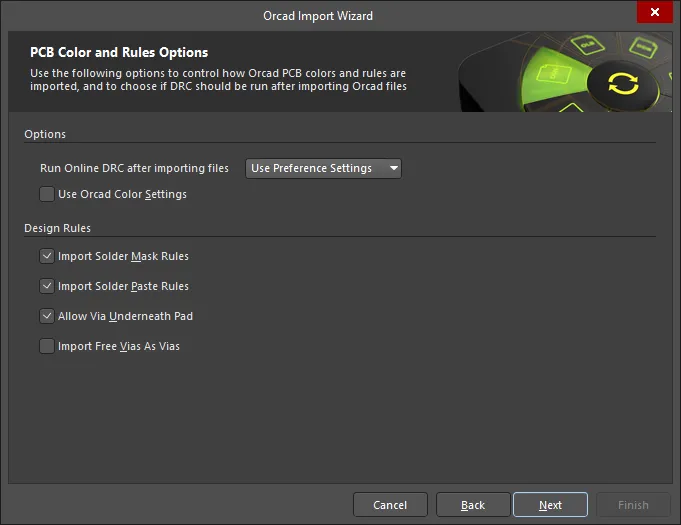

Cadence® OrCAD® Designs and Libraries

OrCAD Capture Designs (*.dsn), OrCAD Layout PCB documents (*.max), OrCAD Capture Libraries (*.olb), OrCAD PCB Libraries (*.llb).

Cadence® OrCAD® CIS Configuration Files and Libraries

OrCAD CIS Configuration file (*.dbc) in binary format, OrCAD Library files (*.llb, *.olb).

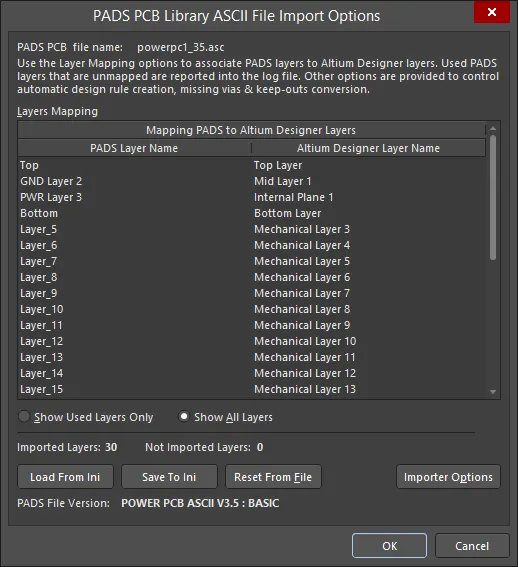

Mentor Graphics® PADS® Layout and PADS® Logic Designs and Libraries

PADS Layout ASCII Design files (*.asc), PADS Layout ASCII Decal Libraries (*.d), PADS Logic ASCII Design files (*.txt), PADS Logic ASCII CAE Decal Libraries (*.c), PADS Logic ASCII Part Type Libraries (*.p).

Cadence® OrCAD® and Mentor Graphics® PADS® Designs and Libraries

OrCAD Capture files (*.dsn), OrCAD Schematic Library files (*.olb), PADS Logic ASCII Design files (*.txt), PADS Layout ASCII Decal Libraries (*.d), PADS Logic ASCII CAE Decal Libraries (*.c), PADS Logic ASCII Part Type Libraries (*.p).

P-CAD Designs and Libraries

P-CAD V16 or V17 Binary Schematic design files (*.sch), P-CAD V16 or V17 ASCII Schematic design files (*.sch), P-CAD V15, V16, or V17 Binary PCB design files (*.pcb), P-CAD V15, V16, or V17 ASCII PCB design files (*.pcb), P-CAD V16 or V17 Binary Library files (*.lib), P-CAD V16 or V17 ASCII Library files (*.lia).

Autodesk® EAGLE™ schematic, PCB and Libraries EAGLE design files saved with EAGLE version 6.4.0 or later. These files are XML-format – EAGLE binary-format design files cannot be imported using the EAGLE Importer; they must first be saved in XML-format in EAGLE.

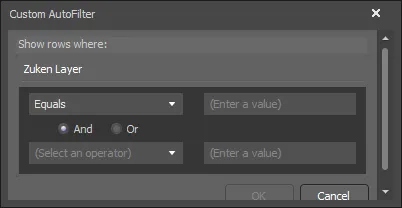

Zuken CR5000 Design Files

Zuken CR5000 PCF Files (*.PCF), Zuken CR5000 FTF Files (*.FTF), Zuken CR5000 EDS Files (*EDS), Zuken CR-5000 EDF Files (*EDF), Zuken Cr-5000 LAF Files (*.LAF), Zuken CR-5000 SMB Files (*.SMB), Zuken CR-5000 SMB Files (*.PRF), Zuken CR-5000 SMB Files (*.CDF). Zuken binary files must be converted to ASCII files before importing.

Click Get More Importers to open the Extensions & Updates page from where you can add additional extensions if needed.

The subsequent pages of the Wizard change depending upon the file type you selected. Find the desired file type in the following list then click on the link to access the information regarding that file type.
