Working with Components In Altium NEXUS

您正在阅读的是 3.1. 版本。关于最新版本,请前往 Working with Components In Altium NEXUS 阅读 4 版本

This documentation page references Altium NEXUS/NEXUS Client (part of the deployed NEXUS solution), which has been discontinued. All your PCB design, data management and collaboration needs can now be delivered by Altium Designer and a connected Altium 365 Workspace. Check out the FAQs page for more information.



Altium NEXUS, with its unified design approach, has traditionally used a component model that extends across all aspects of the electronics design process. However, to seamlessly fit the process of electronics design into the encapsulating product development process as a whole, this model needed to evolve - extending to cover other aspects including other design processes (in particular MCAD and Industrial Design), as well as business processes (such as procurement and manufacturing) that intersect with the product development process. This evolved object model is known as the Unified Component Model.

This component model effectively maps the concept of a design component - in the traditional electronics design arena - to the component as seen by the rest of the organization in the bigger 'product arena'. A truly 'Unified Component' model that not only represents the component in the different design domains (Schematic Capture, PCB Layout, Simulation) but also facilitates choices of the desired physical components - real-world manufactured parts - at design-time, offering a significant improvement in terms of procurement cost and time, when manufacturing the assembled product.

Under this modeling paradigm, the design component, as seen by the designer, is separated from the Manufacturer and/or Vendor parts. This information is not defined as part of the component. Instead, Part Choices are used to map the design component to one or more Manufacturer Parts, listed in a Part Catalog, which in turn can be mapped to one or more Vendor parts, allowing the designer to state up-front, what real parts can be used for any given design component used in a design.

These components, along with their part choices, are stored in a managed content server. A managed component (as it is then referred to) is stored as a series of revisions of a uniquely-identifiable Component Item. Each revision is lifecycle-managed, providing collections of certified components, authorized to be re-instantiated into new design projects, manufactured into prototypes, or used for production runs. In short, a catalog of components implemented through server-based 'libraries'.


The Component Editor

A managed component is defined/edited using the Component Editor. This editor provides two different modes of operation:

  • Single Component Editing mode - provides a streamlined interface when defining/editing a single component. This is the default mode when creating a new Component Item, or editing a single revision of an existing Component Item.
  • Batch Component Editing mode - provides the interface for defining/editing single/multiple components. You can access this mode by choosing the Tools » Switch to Batch Editor command, from the Component Editor's main menus. This mode is also accessed if you have selected multiple Component Item revisions for editing, from the Explorer panel. Each component definition will have a common set of parameters and links to required domain models. Batch editing comes into its own where it makes sense to manage components as a set, such as a set of chip resistors for example.
A new component can be created - using the Component Editor in its Single Component Editing mode - by using the File » New » Component command, accessible from any editor or from within the Components panel, or Explorer panel.
Read about Managed Components.

Managed Domain Models

From a designer's perspective, a managed component gathers together all information needed to represent that component across all design domains, within a single entity. It could therefore be thought of as a container in this respect. A 'bucket' into which all domain models and parametric information is stored.

In terms of its representation in the various domains, a managed component doesn't contain the domain models themselves, but rather links to the relevant model Items that are also in a managed content server. These links - to Symbol, Footprint and Simulation Model Items - are specified as part of the component.

Use the following links to take a look at the various domain models that can be stored and managed in a managed content server:

If you are creating single managed components using the Single Component Editor - then not only can you create the domain models at the same time, as part of component creation, you can also search for an existing real world part and create a new managed component off that, in your server, directly. For more information, see Managed Components.
3D models can also be managed in a managed content server. A 3D Model Item is referenced through a 3D Body object placed as part of the definition of the 2D footprint. As such, it is not a model link specified as part of the component.

Component Templates

Helping to streamline the creation of your managed components, Altium NEXUS, in conjunction with your managed content server, supports creating and defining Component Templates. Just as a schematic template can be used to predefine information on schematic sheets that reference it, a component template is referenced by a managed component, and provides predefined settings for use when defining that component.

In particular, component templates have been developed with parametric information firmly in mind, allowing you to define, in a single location, a 'bucket set' of parameters that will be made available to the referencing component. Through the template, you can control which of those parameters are to be made visible, fill-in default values, and even mark those parameters that are required as mandatory. Validation checks are in-place at the time of component release, to ensure compliance.

Specified default values for many of the template settings can be locked-down to be read-only, or selectively made available for override by the designer when defining a managed component.

The Component Template Editor provides the ability to define explicit data types for component parameters defined within a component template (*.CMPT). In addition, these data types are unit-aware, with a range of popular unit prefixes supported. As such, you can enter a parameter's value using a range of formats - such as 2.2k, 2k2, 4M, 2.5GHz - with the server engineered with the requisite smarts to recognize the numerical value behind those entries.

This feature of a component template facilitates targeted searching through the server's Advanced Search facility - a facility that not only allows you to search by component type, but allows you to search smarter, with range searches. Using the power of unit-aware component parameters, you can quickly define a search, for example, to find all capacitors with a capacitance between 47uF and 220uF.

Unit-aware parameters are also used for smart filtering when searching through your own managed components using the Components panel.
The Component Template Editor also provides support for defining multiple PCB footprints as part of a component template. Any number of footprint model links may be specified, and this will be a welcome feature for those wishing to create components that reference 3 footprints, satisfying the IPC requirements for different density levels (L (least or minimum copper), M (most, or maximum copper), and N (nominal, or median copper)).

Adding Datasheets

Altium NEXUS, in conjunction with your managed content server caters for the ability to store component datasheets within that server and, in doing so, link them to target managed components. This allows you to more fully describe and support a component, in a centralized fashion, while reducing the reliance on external storage mediums (shared network drives for example). Storing datasheets next to the very components that need to reference them also means you no longer need to have a live internet connection, to consult a reference document that can often, and frustratingly, disappear without warning at the whim of the hosting website!

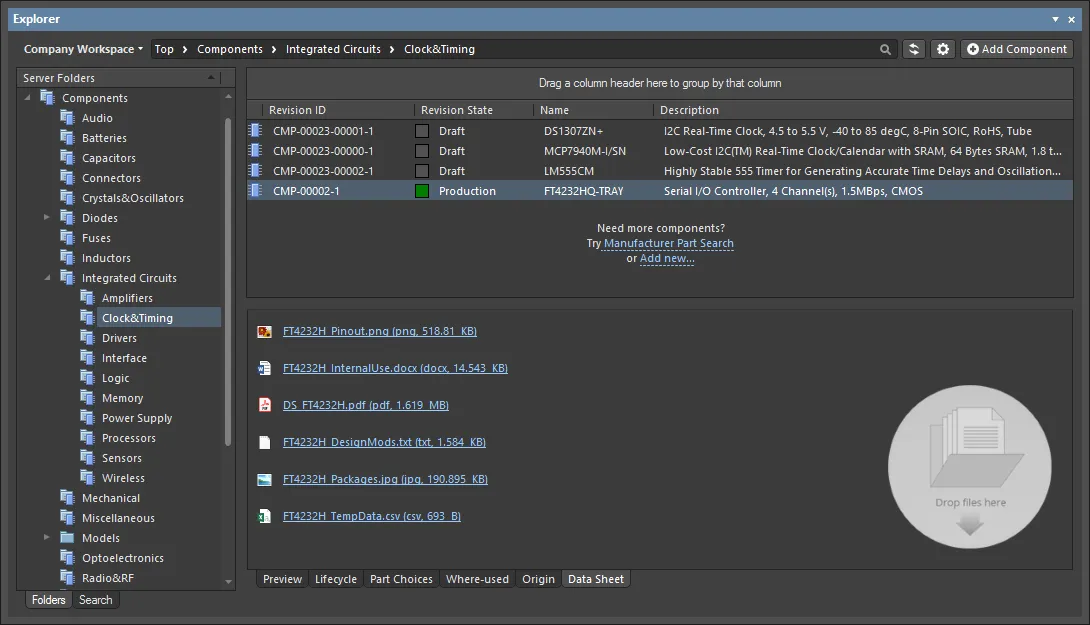

One or more datasheets can be attached (uploaded) to a component - essentially creating a link between the component and the datasheet(s) - when creating/editing that component through the Component Editor.

For an existing component in the server, one or more datasheets can be attached (uploaded) through the Explorer panel. While browsing the required component, switch to its Data Sheet aspect view.

By far the easiest method to attach a datasheet to a component is to select it within your Windows File Explorer, then drag and drop it onto the Parameters region (Component Editor), or the indicated area of the Data Sheet aspect view (Explorer panel). You can attach any number of datasheets to a component. Once dropped, the file(s) will be uploaded.

Part Choices

In the Supply Chain Area, a procurement specialist often does not know what a particular component in the design represents. What is required, is an indication of what needs to be procured - which physically-manufactured components can be used to implement that design component. The best person to indicate which real-world components can be validly used to implement the design-level components would be the designer. As part of the Unified Component modeling paradigm, Altium caters for exactly that through the concept of making Part Choices.

Part Choices essentially create the mapping from a component in your managed content server, to nominated Manufacturer Parts in that server's local Part Catalog. In other words, Part Choices specify the 'allowed' manufacturer parts that can be used to implement that component on the assembled board. The actual supply chain intelligence - comprising Manufacturer (and part number), Supplier (and part number), Description, Pricing and Availability - is sourced from the server's local Part Catalog and the relevant Part Source.

Part Choices can be made while defining the component in the Component Editor - either prior to its release to your managed content server, or at any time after release when editing that component. For more information, refer to the relevant documentation when using the Component Editor in either its Single Component Editing mode, or its Batch Component Editing mode.

The designer can feel truly empowered by being able to specify Manufacturer Parts that are truly interchangeable at manufacturing time in the context of any usage of that component in their design - the very essence of true part equivalency. And it is this intelligent mapping of a component, that turns the humble managed component into a truly Unified Component. The unified nature of a managed component, through the chosen part choices made for it, ultimately creates a link from that component, all the way through chosen Manufacturer Part(s), and on to the Vendor (Supplier) Parts that each itself references. From the designer's perspective, the component is hooked directly into the supply chain.

Each defined Part Choice uses the manufacturer part, and not a specific vendor/supplier, meaning you get a single Part Choice that will bring with it all solutions based on the suppliers vending that part (and who are defined for use through your managed content server).

Real-time data is made available - fed back from the relevant parts database - to let the designer know the current costing and availability of the chosen parts, and from all enabled Vendors that sell those chosen parts (as defined in the local Part Catalog). And the procurement specialist can also keep abreast of supply-chain information, as it is made available in the server for each component therein.

A part is no longer available or has suddenly become cost-ineffective? No matter, provision is made for real-time updates to be sent back to the Design Area as soon as a change occurs. With this vital 'heads-up', the designer can take that choice of part out of the associated list of Part Choices for that component and essentially 'off the radar'. And at any time additional new, truly equivalent parts can be added to the list, should something more appropriate, available, and cost-effective come along.


Part Source Configuration

Each managed content server has its own dedicated Part Catalog. This is a managed local part catalog database, dedicated to the management and tracking of manufacturer parts and their associated supplier parts. The catalog is installed as a service (Part Catalog Service), provided through the server platform, and works only with that server.

The local Part Catalog stores items representative of actual Manufacturer Parts, along with one or more items representative of Supplier Parts - the incarnations of those Manufacturer Parts, as sold by the Suppliers/Vendors. Each Supplier Part is a reference to an item in a parts database - either the aggregate parts database of the Altium Parts Provider (which itself interfaces to, and gathers the parts from, enabled Suppliers), or a linked local parts database (where supported).

Which Supplier Databases are actually used - a list of Approved Suppliers - is managed by the server, through the Part Providers page of its browser interface. This facilitates centralized supply chain management, with designers across the entire organization using the same approved list of Suppliers, with which to source supply chain intelligence for parts used in their designs.

Key Panels to be Aware of

As part of your day-to-day activities with managed components, you will come to use, and rely on, two particular panels within Altium NEXUS:

  • Components panel - provides a powerful interface with which to interact with all your components - both managed (server-based) and library (file-based). And for your managed components, the panel provides a filter-based parametric (faceted) search capability, for specifying target component parameters. In addition, the panel also offers options to edit a managed component through the Component Editor (in its Single Component Editing mode), view the component in its source server, and perform component management functions such as component creation and cloning, or editing the selected component's Part Choices and Type.

  • Manufacturer Part Search panel - provides the ability for you to search for real-world manufactured parts by offering a sophisticated search feature based on categories and parametric filtering. The panel harnesses the manufacturer and supplier data resources of the Altium Parts Provider service to source the most pertinent and up to date component data. A selected manufactured part can be downloaded as a library or acquired to a managed content server, or its parameters and datasheets added to an existing part in the design space. The preferred supplier(s) of that manufactured part may also be selected and added, as Supplier Link parameters, to an existing design part. Acquisition to your own managed content server involves creating a new managed component using the Component Editor in its Single Component Editing mode - pre-filled with information from the searched part - and releasing to that server.

While much of the functionality for working with components is available through the Components panel, you can also use the Explorer panel - essentially the former provides a subset of the functionality available through the latter, and focused with respect to component management. There will be some features relating to components themselves that can still only be performed through the Explorer panel (adding datasheets without editing, changing states, deletion of components and models en masse, etc), but these would be more for atypical, edge cases, or as part of administration/server structuring activities. Remember that the Component Item is just one Item Type - the Explorer panel comes into its own for the entire gamut of Item types supported by a managed content server. For example, creation and management of component templates - very much a relevant entity for managed components - can be carried out only from within the Explorer panel (unless templates are created at the time of library migration using the Library Migrator).

Re-use in a Design

Once released and available in the server, components can be re-used in any new design project. In addition, the concept of component certification is made possible as the components are formally revised and lifecycle-managed. This allows the organization to specify the state of its components and what they can be used for (design, prototype, production, etc). From a design perspective, this results in the creation of server-based libraries, containing a formal collection of components that have been company-approved for use in each new design project embarked upon within that company.

The beauty of using certified components in your designs is that when it comes time to change the lifecycle state of your board design, the integrity of the design becomes greater still, since a design can only be released to "Prototype" or "Production" provided the components it uses are also in a corresponding state. Put another way, you wouldn't start to produce that assembled board if the components are only at a "Design" stage!

And, if we take this to the finest level of granularity in the component management arena itself, the system will flag any attempt to promote the lifecycle state of a component in the server if its referenced domain models are not in a corresponding correct state to be able to do so. In other words, a parent component cannot be further in its lifecycle than its child models.

Design using components that have been certified for use.
Design using components that have been certified for use.

Placement of managed components can be performed either from the Components panel, or the Explorer panel.

A managed component can be placed onto a schematic sheet, or a PCB document. The applicable model for the chosen domain will appear floating on the cursor accordingly.

Prior to Placement

Placing a managed component truly is simplicity itself. But before you do anything, first ensure that the schematic sheet (or PCB document) that is to receive the component is open in Altium NEXUS and is the active document. If documents are open across multiple windows, ensure also that the window containing that active schematic document has focus.

When working with Altium NEXUS across multiple windows, if the Components panel or Explorer panel are docked in any mode to a window without the target schematic in it, the Place command will remain grayed-out. This is because clicking within a docked panel focuses the window to which that panel is attached. With the panel floating however, the required Altium window can be focused (the one with the active target schematic), and that window will keep focus when working inside the panel.

Placement from the Components Panel

Altium NEXUS supports access to, and placement of managed components from, the Components panel. The panel sources components from the active managed content server (and also any open or installed Library files). The panel offers full details of the selected component (Parameters, Models, Datasheets, Part Choices, etc...), component comparison, and for managed components, a filter-based parametric search capability for specifying target component parameters.

The Components panel uses the basic search engine functionality and view that is applied in the Manufacturer Part Search panel. While the Manufacturer Part Search panel harnesses the Altium Parts Provider service and focuses on component manufacturer and supplier data searches, the Components panel is populated with ready-to-place components from your managed content server and file-based library sources.

The panel gives a reassuring sense of familiarity for those designers who have regularly used it to search for, browse, and place components from any other library format - such as model libraries, integrated libraries, and database libraries.

Only the latest revision of each Component Item is presented in the panel.

Commands available to place a managed component from the panel depend on its mode:

  • Narrow Mode - place in one of three ways:
    • Select a component and use the Place command from the right-click context menu.
    • Double-click on the entry for the required component.
    • Click on, drag, and drop the component directly onto the active schematic sheet (or PCB document).

  • Wide Mode - place in one of four ways:
    • Select a component and use the  button at the top-right of the Info pane (accessed by clicking the  button)
    • Select a component and use the Place command from the right-click context menu.
    • Double-click on the entry for the required component.
    • Click on, drag, and drop the component directly onto the active schematic sheet (or PCB document).

Drag & drop places a single instance of the Component Item Revision. If you need to place multiple instances, use the Place command/button, or double-click on the component entry.

Placement from the Explorer Panel

While your day-to-day workings with components will typically be through the Components panel, placement can also be performed from the Explorer panel:

  1. Browse or search for the Component Item you wish to place.
  2. Right-click on the specific revision of the component required (typically the latest, in which case just right-click directly on the top-level Item entry).
  3. Choose the Place command.

The component will float attached to the cursor - just pick a ball-park spot on the active schematic sheet (or PCB document) and click to effect placement. You can fine tune and nudge it into its final location at a later stage.

Place a managed component from the Explorer panel, using the dedicated Place command.
Place a managed component from the Explorer panel, using the dedicated Place command.

For more express placement of your components from the Explorer panel, Altium NEXUS provides the ability to drag & drop revisions of Component Items directly onto the active schematic document (or PCB document). Browse your managed content server for the required Component Item to be placed. Placement involves a specific revision of that Item, so be sure to expand the main Item entry to list all of its available revisions (click the  button at the top-right of the panel and disable the Show only latest option to see all previous revisions). Then click on the required revision and drag an instance of it onto the schematic sheet (or PCB document).

Drag and drop the top-level entry for a Component Item itself, to place an instance of the latest revision of that Item.
Drag & Drop places a single instance of the Component Item Revision. If you need to place multiple instances, right-click on the required Item Revision (or top-level Item entry for the latest revision) and use the Place command.

Where-Used Capabilities

The highly relational structure of the data in a managed content server lends itself to powerful 'where used' capabilities. At any time, you are able to see where a particular child Item is used, in terms of parent Items in the server. So for a given domain model, you can quickly identify which component Items reference it. For a given component Item, you can see which board designs it has been used in, which managed schematic sheets, and so on. Conversely, and from a parent Item's perspective, you are able to quickly browse its children.

The ability to traverse the content of a managed content server in this way can offer great benefit, not least of a time-saving nature. For example, if a component is deprecated or made obsolete for any reason, you can quickly identify and pull-up the schematic sheets and board-level designs in which it is placed, and update and re-release those Items as new revisions using another equivalent and approved component.

And why re-invent that proverbial wheel, when you can find a component that you need to use and see which designs it has already been used in. If those designs are at a production state, that component has been proven already and is therefore good-to-go. It can be re-used in your next design with assured confidence.

Inspecting from the Components Panel

Select a managed component in the Components panel to view information about where the latest revision of it is currently used, in the Where Used section (if the panel is in its Wide mode, click the  button to access the Info pane). The section provides quick-filter information for:

  • Projects - the managed projects in which the component has been used. Information is only presented once the project has been released.
  • Managed Sheets - the managed schematic sheets on which the component has been used.

Inspecting where a managed component (latest revision) is used, through the Components panel.Inspecting where a managed component (latest revision) is used, through the Components panel.

Inspecting from the Explorer Panel

The Explorer panel provides a richer experience with respect to the various parent-child relationships that can exist between data items in the server:

  • For a parent Item, use the Explorer panel's Children aspect view tab.
For a Component Item or Managed Sheet Item, children can also be viewed using the Explorer panel's Preview aspect view tab.

Example exploring the children of a revision of a Managed Schematic Sheet Item, using the Children aspect view tab. Notice the information is also available from the Preview aspect view tab.Example exploring the children of a revision of a Managed Schematic Sheet Item, using the Children aspect view tab. Notice the information is also available from the Preview aspect view tab.

  • For a child Item, use the Explorer panel's Where-used aspect view tab.

Example exploring where revisions of Symbol (top) and Component (bottom) Items are used, using the Where-used aspect view tab.Example exploring where revisions of Symbol (top) and Component (bottom) Items are used, using the Where-used aspect view tab.

Double-clicking on the entry for a child Item in the Preview aspect view tab, or on an Item entry in the Children or Where-used aspect view tabs, will take you to that Item within the applicable managed content server in which it resides.

Managing Managed Components

Having initially placed managed components onto schematic sheets of a board design, there now needs to be some way of updating those component instances, with any changes to their linked source Component Items in the applicable managed content server. In other words, a means by which to keep the design synchronized with the managed entities that it uses.

For example, a Component Item may have been re-released, perhaps reflecting a change to a child model. This results in a new revision of that Component Item. The placed instance of that Item is now using an older revision and you may want to update it to use the latest revision instead. Alternatively, you may have decided to use a different component altogether, and simply need to change the existing component in the design for an alternate one.

There are various methods available by which to manage the components after initial placement into a design.

Single Instance Component Change

Each placed component has a link back to the revision of the Component Item in the server. This information can be found on the Properties panel, when browsing the properties for the selected component.

Each placed instance of a managed component has a link back to the specific revision of that Component Item in the server.
Each placed instance of a managed component has a link back to the specific revision of that Component Item in the server.

If there is a later revision of the existing component available, the entry for the revision status (on the Properties panel) will reflect this using the text Out of date, to the right of the current revision's lifecycle state. Note that if the lifecycle state has been marked as not being allowed for design (Allowed to be used in designs option disabled for it in the State Properties dialog), then the entry will instead show as Inapplicable.

At this lowest, individual component level, the placed instance can be:

  • Updated to the latest revision of the existing Component Item, by clicking the  button.

Example of updating the same component to its latest revision - hover over the image to see the result.Example of updating the same component to its latest revision - hover over the image to see the result.

  • Switched out for the latest revision of a different (a replacement) Component Item, by clicking the  button, at the right of the Design Item ID field. The Replace dialog will appear, presenting all components in your active server. The current component is shown at the top of the list. Search for the replacement component required, select it, then click OK.

Example of replacing the existing component with a different one (an alternate).Example of replacing the existing component with a different one (an alternate).

Effecting Batch Component Changes - the Item manager

Related page: Managing Items with the Item Manager

Individual component change is great, however it soon becomes tiresome when dealing with a more sizable number of components. For this, you need a single, centralized place from which to effect multiple changes in a batch-like manner. Enter the Item Manager (Tools » Item Manager).

The Item Manager is 'command-central' for synchronizing server-based (or 'managed') design entities - placed on schematic sheets - with the source Items they are linked to in a server. It automatically compiles the schematic project, detects and lists all components, flagging if they are managed or not, and then compares the Item-Revision of each managed component on the schematics against the available revisions of that Item in the server. For each entity, information about the current linked Item is given, in terms of revision, lifecycle state, and the source server in which it resides.

The automated comparison of revisions for managed Items flags any that are out of date. These can then be selected and prepared for update to the latest revision with minimal effort. For more detail, see Detecting when there are Updates Required.

You have full control over which of these managed entities to update, and how. For example:

  • Select an individual entry and update it to use the latest revision of the linked Item, or choose to use the latest revision of a completely different Item.
  • Select a group of entries that utilize the same linked Item and either update them to the latest revision of that item, or choose to use the latest revision of a completely different Item.

All proposed changes are reflected back in the manager.

Once changes have been set up as required, generate an Engineering Change Order (ECO) and browse the actions that will be taken to implement those changes. Disable any actions if required - you are always in the driving seat! When ready, execute the ECO and the changes will be effected. Fast and efficient, your placed server items are managed with simplistic ease.

If you're confident in the changes you are making, you can use the Item Manager's Apply ECO feature - effecting the changes quietly, without popping the Engineering Change Order dialog.

The following examples illustrate use of the Item Manager:

  • To update multiple components to use the latest revision of the existing Component Item.

  • To change a couple of components for the latest revision of a different Component Item - chosen through the Replace dialog.

Not only can the Item Manager be used to keep your managed components in your designs in-sync with changes to the source Items in the connected server(s), it is also a powerful tool to aid in the migration of your existing board designs - from using unmanaged design items to using managed, server-based design Items. Once you have migrated your design components to a managed content server, and any schematic sheets (device sheets), you use the Item Manager to 'replace' the existing components and sheet symbols with their newly migrated server-based incarnations. In other words, the components remain the same, from the design perspective, but the source of those components changes.

Powerful auto-matching capabilities enable you to quickly match unmanaged components and sheet symbols to Items in the managed content server.

Changing a Component from a BomDoc

It's not uncommon to identify an issue with a component when the BomDoc is being checked and made ready for ordering the parts. For example, the designer may have forgotten to finalize the selection of a component, or a component has gone EOL and the designer wants to explore the price and availability of potential replacements. While you could resolve this by returning to the schematic and editing the component, selecting a suitable part, then refreshing the BomDoc, ActiveBOM supports performing this directly from within the BomDoc - then pushing that change back to the schematic via an Engineering Change Order.

From within the BomDoc, right-click on the selected component(s) and select the Operations » Change <ComponentName> command. The Replace dialog will open, from where the replacement component can be searched for. After finding the desired replacement component select it, then click OK. The Engineering Change Order dialog will open, detailing the changes needed to synchronize the schematic with the BomDoc.

Example of component replacement directly from within a BomDoc.Example of component replacement directly from within a BomDoc.

  • The replace component feature searches for a new component in the currently active managed content server.
  • If the component change also affects the board design, an update to the PCB should also be performed from the schematic.
  • The Replace dialog has a similar layout and shares many of the features with the Components panel.

Migrating Existing Unmanaged Components

Main page: Streamlined Migration of Existing Libraries to Your Managed Content Server

Altium NEXUS, in conjunction with your managed content server, provides a streamlined, simple process to quickly migrate your existing libraries to that server. The GUI to this process - the Library Migrator - presents an intuitive flow that takes initial selected libraries, and migrates them to your server. Catering for all types of libraries relating to older component management methodologies - SCHLIB, PCBLIB, INTLIB, DBLIB, SVNDBLIB - the Library Migrator is the perfect solution to quickly building your company's set of managed components, and the many benefits that such components enjoy (high-integrity, lifecycle management, centralized storage and management, where-used functionality, ease of design resuse).

The Library Migrator offers a minimalist Simple interface mode where the selected file-based component libraries are migrated to managed server components through a single step, while the migrator automatically takes care of type classification, the target source folder, parameter inclusion and value type, and the transfer of all relevant data. The interface is also available in an Advanced mode that provides a full preview of the proposed library migration, and access to its related data and settings. And while the migration is a single-click process by default, the migrator also offers advanced configuration options through the Properties panel for enhanced control over exactly how that migration is performed.

Access the Library Migrator from any editor by choosing the File » Library Migrator command from the main menus.
While access to the Library Migrator is available in Altium NEXUS, should you wish to access an unmanaged library to make pre-migration tweaks, or access the Available Libraries list, you will need to enable the use of legacy, unmanaged component management methodologies. Use of unmanaged content is disabled by default in Altium NEXUS, as it is not recommended. You can restore this functionality by enabling the Legacy.UnManagedLibraries option in the Advanced Settings dialog - accessed by clicking the  button, on the System - General page of the Preferences dialog. You will need to restart Altium NEXUS for the change to this setting to take effect.

All information that is present in an original source library is migrated to the server-based managed components, including all referenced domain models (schematic symbols, PCB footprints, Simulation Models), parametric information, assigned part choices, datasheet files, etc . Component Templates are also created where necessary, and may then be refined and used for subsequent library migrations. If your original components have multiple PCB footprints defined, the Library Migrator will bring those models across and keep the current default footprint. And if you only work with PCB libraries – your only concern is PCB layout – then the Library Migrator supports migration of just those libraries, or it can be switched to a models only migration mode where specified models types are migrated from Integrated or Database libraries. Libraries that include multiple component types (monolithic libraries) are automatically detected and processed as well.

The Library Migrator in its Advanced mode - the full user interface to the component migration process.
The Library Migrator in its Advanced mode - the full user interface to the component migration process.

While migration may seem daunting, the defaults have been defined to enable you to get your collection of managed components without having to change a thing - start the process and design with the fruits of the Migrator's labor. The system conducts and handles a number of validations, for example to ensure no duplicate IDs for the resulting managed components, or to ensure no duplicate models or component templates are created, and that such entities are reused across (linked to) components where needed. And if issues do arise, the system flags them, with suggestions on how to resolve those issues, aiming to get the migration back on track as quickly, and as smoothly as possible.
